| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||

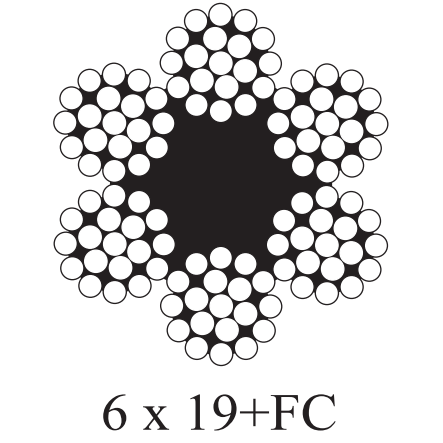

| 6x19 FC | ||||
| Extra Improved Plow Steel (EIPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 6,020 | 5,420 | 96 | 43.8 |
| 5/16" | 9,380 | 8,440 | 151 | 68.6 |
| 3/8" | 13,420 | 12,080 | 216 | 98 |
| 7/16" | 18,200 | 16,400 | 287 | 130 |
| 1/2" | 23,600 | 21,200 | 375 | 170 |
| 9/16" | 29,800 | 26,800 | 474 | 215 |
| 5/8" | 36,800 | 33,100 | 586 | 266 |
| 3/4" | 52,400 | 47,200 | 844 | 383 |
| 7/8" | 70,800 | 63,700 | 1,151 | 522 |
| 1" | 92,000 | 82,800 | 1,501 | 681 |
| 1-1/8" | 115,800 | 104,200 | 1,900 | 862 |
| 1-1/4" | 142,200 | 128,000 | 2,346 | 1,064 |
| 1-3/8" | 171,000 | 153,900 | 2,840 | 1,288 |
| 1-1/2" | 202,000 | 181,800 | 3,377 | 1,532 |
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||
| 6x19 FC | ||||
| Extra Improved Plow Steel (EIPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 6,020 | 5,420 | 96 | 43.8 |
| 5/16" | 9,380 | 8,440 | 151 | 68.6 |
| 3/8" | 13,420 | 12,080 | 216 | 98 |
| 7/16" | 18,200 | 16,400 | 287 | 130 |
| 1/2" | 23,600 | 21,200 | 375 | 170 |
| 9/16" | 29,800 | 26,800 | 474 | 215 |
| 5/8" | 36,800 | 33,100 | 586 | 266 |
| 3/4" | 52,400 | 47,200 | 844 | 383 |
| 7/8" | 70,800 | 63,700 | 1,151 | 522 |
| 1" | 92,000 | 82,800 | 1,501 | 681 |
| 1-1/8" | 115,800 | 104,200 | 1,900 | 862 |
| 1-1/4" | 142,200 | 128,000 | 2,346 | 1,064 |
| 1-3/8" | 171,000 | 153,900 | 2,840 | 1,288 |
| 1-1/2" | 202,000 | 181,800 | 3,377 | 1,532 |
