| Quantity: | |
|---|---|
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||

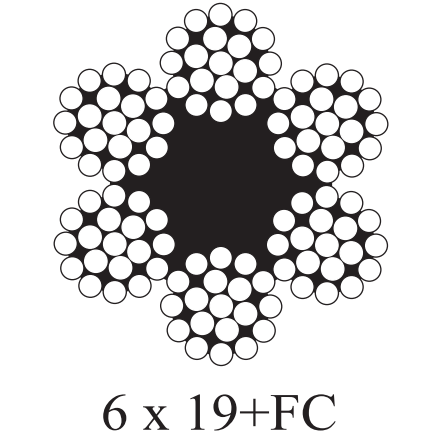

| 6x19 FC | ||||
| Improved Plow Steel (IPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 5,480 | 4,940 | 96 | 43.8 |
| 5/16" | 8,520 | 7,660 | 151 | 68.6 |
| 3/8" | 12,200 | 10,980 | 216 | 98 |
| 7/16" | 16,540 | 14,880 | 287 | 130 |
| 1/2" | 21,400 | 19,260 | 375 | 170 |
| 9/16" | 27,000 | 24,300 | 474 | 215 |
| 5/8" | 33,400 | 30,000 | 586 | 266 |
| 3/4" | 47,600 | 42,800 | 844 | 383 |
| 7/8" | 64,400 | 58,000 | 1,151 | 522 |
| 1" | 83,600 | 75,200 | 1,501 | 681 |
| 1-1/8" | 105,200 | 94,600 | 1,900 | 862 |
| 1-1/4" | 129,200 | 116,200 | 2,346 | 1,064 |
| 1-3/8" | 155,400 | 139,800 | 2,840 | 1,288 |
| 1-1/2" | 184,000 | 165,600 | 3,377 | 1,532 |
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||
| 6x19 FC | ||||
| Improved Plow Steel (IPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 5,480 | 4,940 | 96 | 43.8 |
| 5/16" | 8,520 | 7,660 | 151 | 68.6 |
| 3/8" | 12,200 | 10,980 | 216 | 98 |
| 7/16" | 16,540 | 14,880 | 287 | 130 |
| 1/2" | 21,400 | 19,260 | 375 | 170 |
| 9/16" | 27,000 | 24,300 | 474 | 215 |
| 5/8" | 33,400 | 30,000 | 586 | 266 |
| 3/4" | 47,600 | 42,800 | 844 | 383 |
| 7/8" | 64,400 | 58,000 | 1,151 | 522 |
| 1" | 83,600 | 75,200 | 1,501 | 681 |
| 1-1/8" | 105,200 | 94,600 | 1,900 | 862 |
| 1-1/4" | 129,200 | 116,200 | 2,346 | 1,064 |
| 1-3/8" | 155,400 | 139,800 | 2,840 | 1,288 |
| 1-1/2" | 184,000 | 165,600 | 3,377 | 1,532 |
