Our main products are: Galvanized wires,Steel wire ropes,Aircraft cables,Stainless steel cables,Wire Rope slings,Cable assemblies...
 |
| Quantity: | |
|---|---|
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||

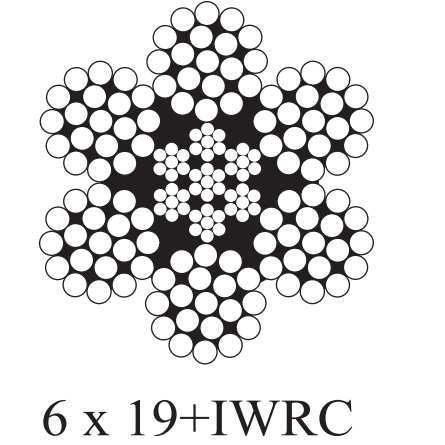

| 6x19 IWRC | ||||
| Extra Improved Plow Steel (EIPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 6,800 | 6,120 | 106 | 48.2 |
| 5/16" | 10,540 | 9,480 | 166 | 75.5 |
| 3/8" | 15,100 | 13,600 | 238 | 108 |
| 7/16" | 20,400 | 18,360 | 315 | 143 |
| 1/2" | 26,600 | 24,000 | 412 | 187 |
| 9/16" | 33,600 | 30,200 | 522 | 237 |
| 5/8" | 41,200 | 37,000 | 646 | 293 |
| 3/4" | 58,800 | 53,000 | 930 | 422 |
| 7/8" | 79,600 | 71,600 | 1,265 | 574 |
| 1" | 103,400 | 93,000 | 1,653 | 750 |
| 1-1/8" | 130,000 | 117,000 | 2,094 | 950 |
| 1-1/4" | 159,800 | 143,800 | 2,582 | 1,171 |
| 1-3/8" | 192,000 | 172,800 | 3,126 | 1,418 |
| 1-1/2" | 228,000 | 206,000 | 3,719 | 1,687 |
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||
| 6x19 IWRC | ||||
| Extra Improved Plow Steel (EIPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 6,800 | 6,120 | 106 | 48.2 |
| 5/16" | 10,540 | 9,480 | 166 | 75.5 |
| 3/8" | 15,100 | 13,600 | 238 | 108 |
| 7/16" | 20,400 | 18,360 | 315 | 143 |
| 1/2" | 26,600 | 24,000 | 412 | 187 |
| 9/16" | 33,600 | 30,200 | 522 | 237 |
| 5/8" | 41,200 | 37,000 | 646 | 293 |
| 3/4" | 58,800 | 53,000 | 930 | 422 |
| 7/8" | 79,600 | 71,600 | 1,265 | 574 |
| 1" | 103,400 | 93,000 | 1,653 | 750 |
| 1-1/8" | 130,000 | 117,000 | 2,094 | 950 |
| 1-1/4" | 159,800 | 143,800 | 2,582 | 1,171 |
| 1-3/8" | 192,000 | 172,800 | 3,126 | 1,418 |
| 1-1/2" | 228,000 | 206,000 | 3,719 | 1,687 |
