Our main products are: Galvanized wires,Steel wire ropes,Aircraft cables,Stainless steel cables,Wire Rope slings,Cable assemblies...
 |
| Quantity: | |
|---|---|
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||

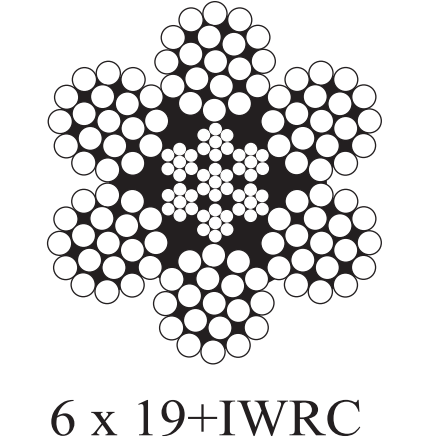

| 6x19 IWRC | ||||
| Improved Plow Steel (IPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 5,880 | 5,300 | 106 | 48.2 |
| 5/16" | 9,160 | 8,240 | 166 | 75.5 |
| 3/8" | 13,120 | 11,800 | 238 | 108 |
| 7/16" | 17,780 | 16,000 | 315 | 143 |
| 1/2" | 23,000 | 20,700 | 412 | 187 |
| 9/16" | 29,000 | 26,100 | 522 | 237 |
| 5/8" | 35,800 | 32,200 | 646 | 293 |
| 3/4" | 51,200 | 46,000 | 930 | 422 |
| 7/8" | 69,200 | 62,200 | 1,265 | 574 |
| 1" | 89,800 | 80,800 | 1,653 | 750 |
| 1-1/8" | 113,000 | 101,800 | 2,094 | 950 |
| 1-1/4" | 138,000 | 125,000 | 2,582 | 1,171 |
| 1-3/8" | 167,000 | 150,400 | 3,126 | 1,418 |
| 1-1/2" | 197,000 | 178,000 | 3,719 | 1,687 |
| Steel Wire Rope | ||||
| Specification: RR-W-410G | ||||
| 6x19 IWRC | ||||
| Improved Plow Steel (IPS) | ||||
| Nominal | Min. Breaking Strength | Unit | ||
| Diameter | Ungalv. | Galvanized | Weight | |
| inch | lb | lb | lb/1000' | kg/1000' |
| 1/4" | 5,880 | 5,300 | 106 | 48.2 |
| 5/16" | 9,160 | 8,240 | 166 | 75.5 |
| 3/8" | 13,120 | 11,800 | 238 | 108 |
| 7/16" | 17,780 | 16,000 | 315 | 143 |
| 1/2" | 23,000 | 20,700 | 412 | 187 |
| 9/16" | 29,000 | 26,100 | 522 | 237 |
| 5/8" | 35,800 | 32,200 | 646 | 293 |
| 3/4" | 51,200 | 46,000 | 930 | 422 |
| 7/8" | 69,200 | 62,200 | 1,265 | 574 |
| 1" | 89,800 | 80,800 | 1,653 | 750 |
| 1-1/8" | 113,000 | 101,800 | 2,094 | 950 |
| 1-1/4" | 138,000 | 125,000 | 2,582 | 1,171 |
| 1-3/8" | 167,000 | 150,400 | 3,126 | 1,418 |
| 1-1/2" | 197,000 | 178,000 | 3,719 | 1,687 |
